SL4BLSH80A-Laser Cut Square Hole Sliding Iris Diaphragm 3D Принт Модель

$9.90
SL4BLSH80A-Laser Cut Square Hole Sliding Iris Diaphragm 3D Принт Модель
$ 9.90
Видалити! Додати в закладки
  • Колекція:
    No
  • Готовність до друку:
    No
  • 3D Скан:
    No
  • Зміст для дорослих:
    No
  • PBR:
    No
  • Перегляди:
    1895
  • Дата:
  • ID Товару:
    418833
  • Рейтинг:

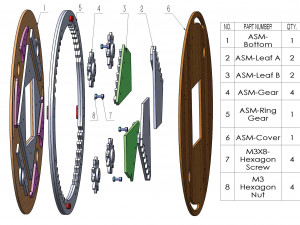

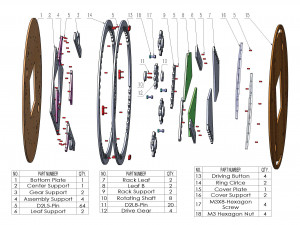

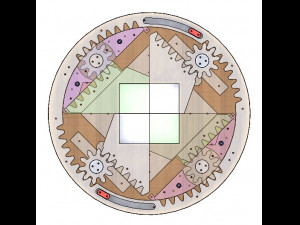

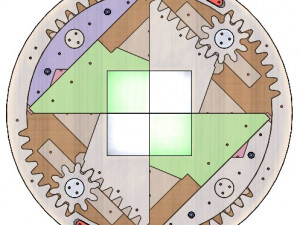

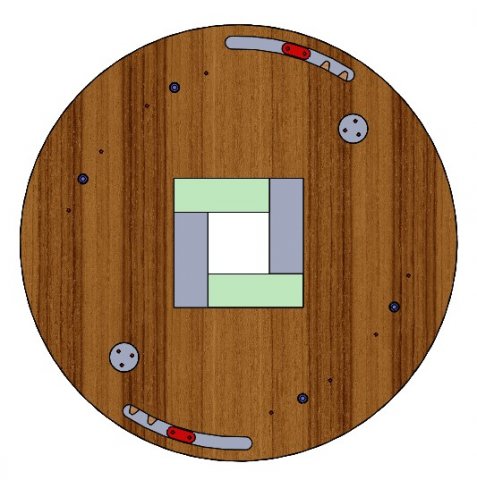

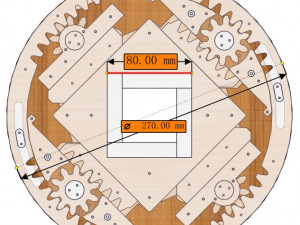

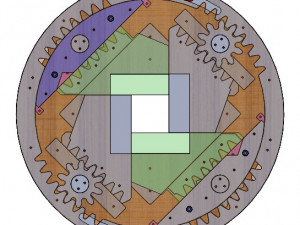

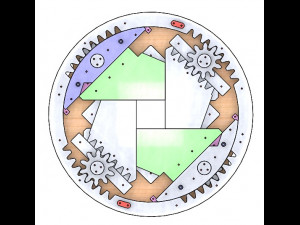

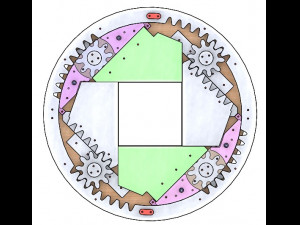

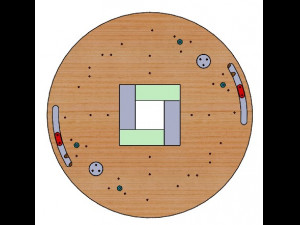

what you get are digital STEP and DXF format files. You can manufacture parts and assemble the mechanism yourself. This sliding iris diaphragm is similar to a shutter mechanism. The shape is similar to Chinese ancient copper coins-a square hole inside a circle. When you move the "Driving Button",the four blades in the center square hole open or close gradually. Most parts can be fabricated on a laser cutter. You need to prepare some metal parts,such as bolt, nut, pins,refer to the BOM in the package. The square hole is 80x80 mm, the outer diameter is 270 mm, and the mechanism's thickness is 12 mm. Part's thickness is 3 mm.
Free 3DPDF file are downloadable: https://www.twothreed.com/
This tutorial shows you how to assemble parts together: https://www.tanerxun.com/assemble-square-hole-type-sliding-iris-diaphragm/.html
Готовність до друку: Ні
Потрібно більше форматів?
Якщо вам потрібен інший формат, будь ласка, зробіть запит за допомогою тікета підтримки. Ми можемо конвертувати 3D-моделі: .stl, .c4d, .obj, .fbx, .ma/.mb, .3ds, .3dm, .dxf/.dwg, .max. .blend, .skp, .glb. Ми не конвертуємо 3d сцени і такі формати, як .step, .iges, .stp, .sldprt тощо!

Завантажити SL4BLSH80A-Laser Cut Square Hole Sliding Iris Diaphragm 3D Принт Модель dxf step від monk3947

chinese-ancientcoin copper-coin iris-mechanism sliding-mechanism mechanical-iris mechanical-mechanism square-hole windows-design diy diy-project laser-cut sheetmetal laser-engrave laserengraving mechanical-engineering mechanical-design wood-part
