LS2BLROD60A-Mechanical taijimechanical iris 3Dプリントモデル

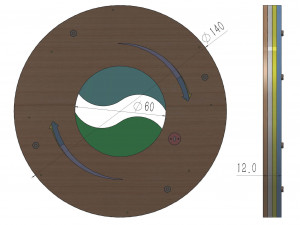

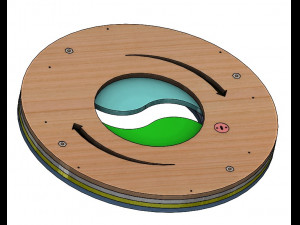

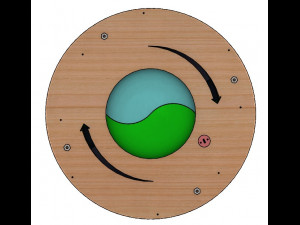

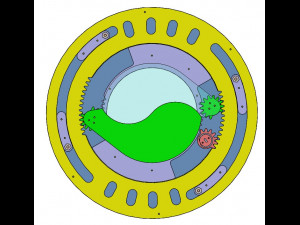

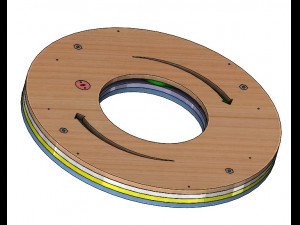

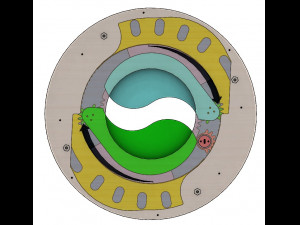

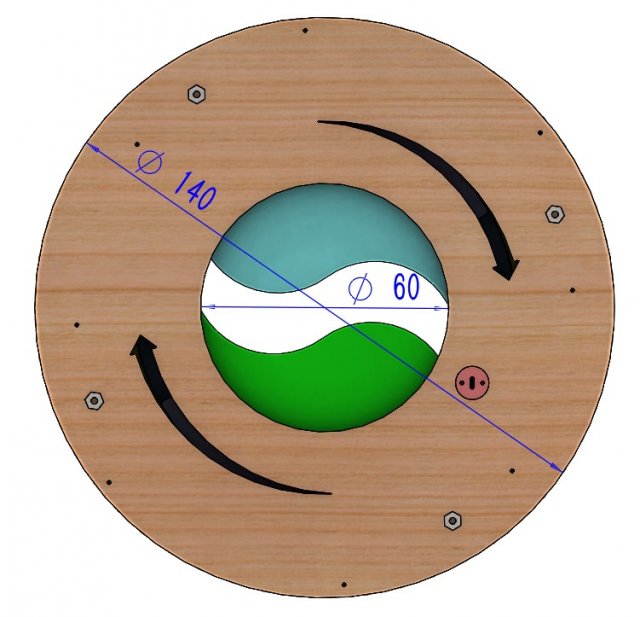

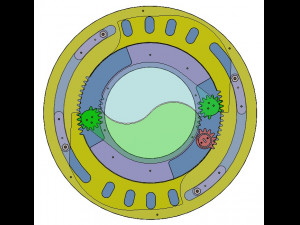

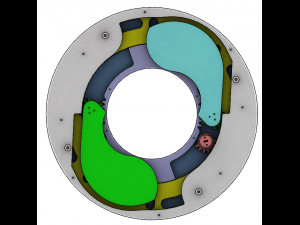

Two-blades iris diaphragm. It looks simiar to Chinese Taiji(Taichi). When you rotate the "Drive Part"or the middle plate, the center hole can open or close gradually. The diameter of center hole is 60mm, the outer circle is diameter 140mm and thickness is 12 mm. If you make parts with a laser cutter, the material's thickness should be 3 mm. Because your material's thickness may be thinner or thicker than 3mm, perhaps you need to do some handwork accordingly when assemblying.To assemble the parts togther,some metal parts and glue are needed, refer to the BOM in the attachment.
Free 3DPDF file can be downloaded before purchasing if you need：https://www.twothreed.com/

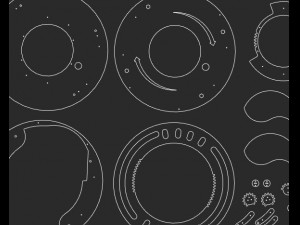

STEP and DXF format files are included. This tutorial can help you to assemble the mechanism.
https://www.tanerxun.com/assemble-2-blades-rotating-iris-diaphragm-for-laser-cut/.html 印刷　準備: いいえ
