SL4BLSH60A-Laser Cut Square Hole Sliding Iris Diaphragm Modello di stampa 3D

$9.90
Licenza:
SL4BLSH60A-Laser Cut Square Hole Sliding Iris Diaphragm Modello di stampa 3D
$ 9.90
Rimuovi Segnalibro Segnala questo Oggetto
  • Collezione:
    No
  • Stampa Pronta:
    No
  • 3D Scan:
    No
  • Per adulti:
    No
  • PBR:
    No
  • Visualizzazioni:
    2647
  • Data:
  • ID Oggetto:
    418545
  • Voto:
Effettua un report di questo oggetto

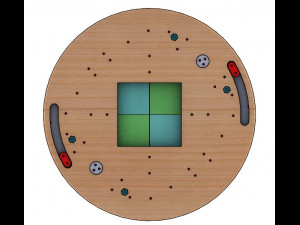

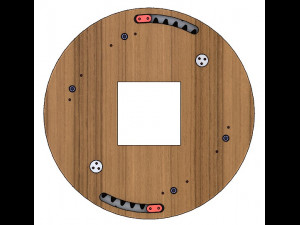

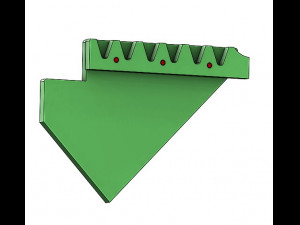

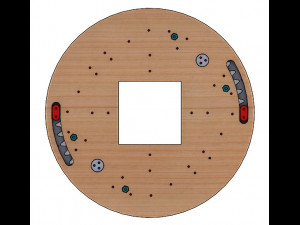

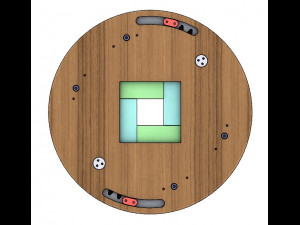

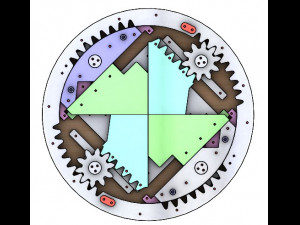

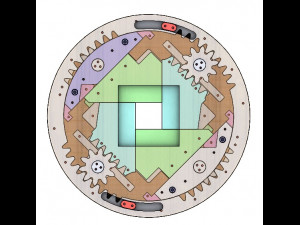

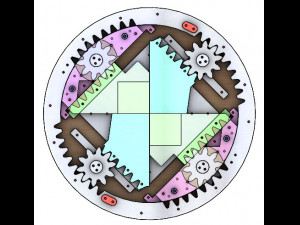

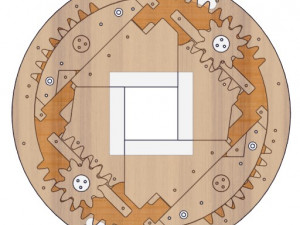

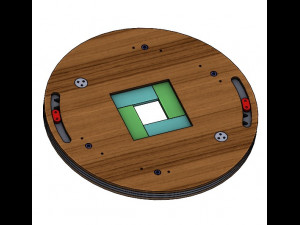

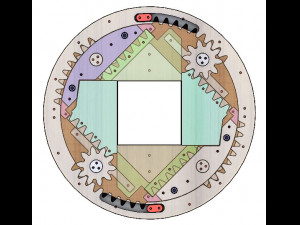

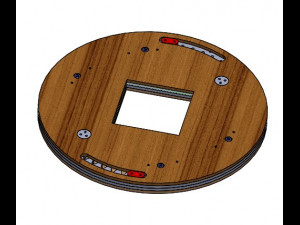

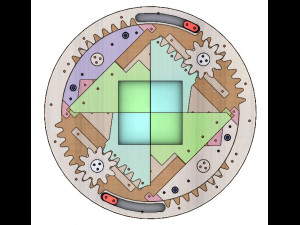

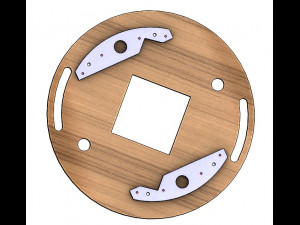

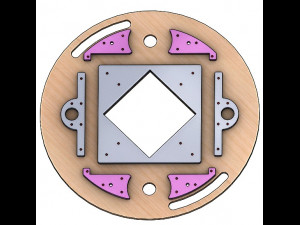

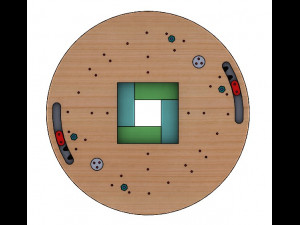

It is a digital product, what you get are STEP and DXF format files. This sliding iris diaphragm is similar to a shutter mechanism. The shape is similar to Chinese ancient copper coins-a square hole inside a circle. There are four blades.When you move the "Driving Button",the blades in the center square hole open or close gradually. Most parts can be manufactured on a laser cutter.

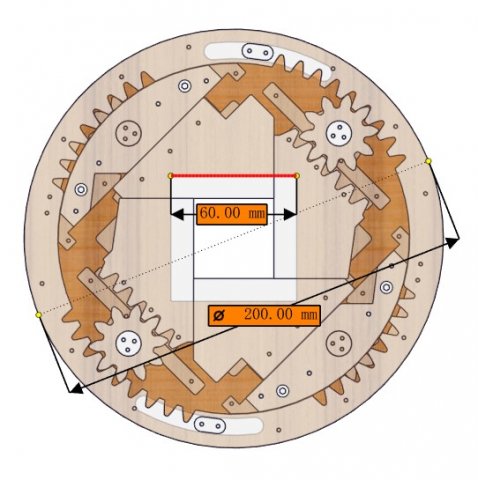

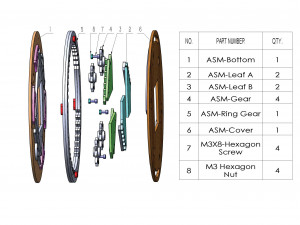

You need to prepare some metal parts,such as bolt, nut, pins,refer to the BOM in the package. The square hole is 60x60 mm, the outer diameter is 200 mm, and the mechanism's thickness is 12 mm. Part's thickness is 3 mm.
Free 3DPDF file are downloadable: https://www.twothreed.com/
This tutorial shows you how to assemble parts together: https://www.tanerxun.com/assemble-square-hole-type-sliding-iris-diaphragm/.html
Stampa Pronta: No
Hai bisogno di ulteriori formati?
Se hai bisogno di diversi formati, aprire un nuovo Ticket i Supporto e una richiesta per questo. Convertiamo modelli 3D a: .stl, .c4d, .obj, .fbx, .ma/.mb, .3ds, .3dm, .dxf/.dwg, .max. .blend, .skp, .glb. Non convertiamo scene 3d e formati come .step, .iges, .stp, .sldprt.!

Scaricato SL4BLSH60A-Laser Cut Square Hole Sliding Iris Diaphragm Modello di stampa 3D dxf Da monk3947

chinese-ancient-coin copper-coin iris-mechanism sliding-mechanism mechanical-iris mechanical-mechanism square-hole windows-design diy diy-project laser-cut sheetmetal laser-engrave laser-engraving mechanical-engineering mechanical-design
