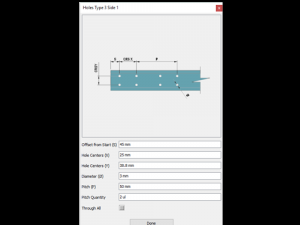

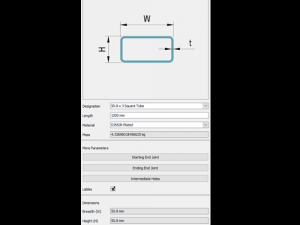

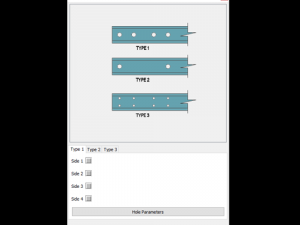

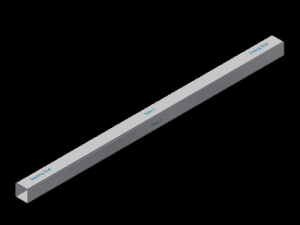

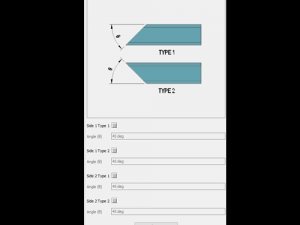

this model consist of square and rectangular tubing. the tubings are modeled from a predefined list of sections. all parameters are driven from the included forms.

the list of sections as follows:
12.7 x 1.6 square tube
15.9 x 1.6 square tube
19.1 x 1.6 square tube
19.1 x 2 square tube
25 x 10 x 1.2 rectangular tube
25.4 x 12.7 x 1.6 rectangular tbe
25.4 x 12.7 x 2 rectangular tube
25.4 x 1.6 square tube
25.4 x 2 square tube
25.4 x 2.5 square tube
25.4 x 3 square tube
30 x 20 x 1.6 rectangular tube
30 x 20 x 2 rectangular tube
30 x 20 x 2.5 rectangular tube
30 x 20 x 3 rectangular tube
30 x 1.6 square tube
30 x 2 square tube
30 x 2.5 square tube
30 x 3 square tube
31.8 x 12.7 x 1.2 rectangular tube
31.8 x 12.7 x 1.6 rectangular tube
31.8 x 19.1 x 1.6 rectangular tube
31.8 x 19.1 x 2 rectangular tube
31.8 x 19.1 x 2.5 rectangular tube
31.8 x 19.1 x 3 rectangular tube
31.8 x 1.6 square tube
31.8 x 2 square tube
31.8 x 2.5 square tube
31.8 x 3 square tube
31.8 x 4 square tube
38.1 x 19.1 x 1.6 rectangular tube
38.1 x 19.1 x 2 rectangular tube
38.1 x 19.1 x 2.5 rectangular tube
38.1 x 19.1 x 3 rectangular tube
38.1 x 25.4 x 1.6 rectangular tube
38.1 x 25.4 x 2 rectangular tube
38.1 x 25.4 x 2.5 rectangular tube
38.1 x 25.4 x 3 rectangular tube
38.1 x 25.4 x 4 rectangular tube
38.1 x 1.6 square tube
38.1 x 2 square tube
38.1 x 2.5 square tube
38.1 x 3 square tube
38.1 x 4 square tube
38.1 x 4.5 square tube
40 x 15 x 1.6 rectangular tube
40 x 15 x 2 rectangular tube
40 x 15 x 2.5 rectangular tube
40 x 15 x 3 rectangular tube
40 x 20 x 1.6 rectangular tube
40 x 20 x 2 rectangular tube
40 x 20 x 2.5 rectangular tube
40 x 20 x 3 rectangular tube
40 x 30 x 1.6 rectangular tube
40 x 30 x 2 rectangular tube
40 x 1.6 square tube
40 x 2 square tube
40 x 2.5 square tube
40 x 3 square tube
40 x 4 square tube
40 x 4.5 square tube
44.5 x 19.1 x 1.6 rectangular tube
44.5 x 19.1 x 2 rectangular tube
44.5 x 19.1 x 2.5 rectangular tube
44.5 x 19.1 x 3 rectangular tube
44.5 x 19.1 x 4 rectangular tube
44.5 x 25.4 x 1.6 rectangular tube
44.5 x 25.4 x 2 rectangular tube
44.5 x 31.8 x 1.6 rectangular tube
44.5 x 31.8 x 2 rectangular tube
44.5 x 31.8 x 2.5 rectangular tube
44.5 x 31.8 x 3 rectangular tube
44.5 x 31.8 x 4 rectangular tube
44.5 x 31.8 x 4.5 rectangular tube
44.5 x 1.6 square tube
44.5 x 2 square tube
44.5 x 2.5 square tube
44.5 x 3 square tube
44.5 x 4 square tube
50 x 15 x 1.6 rectangular tube
50 x 15 x 2 rectangular tube
50 x 15 x 2.5 rectangular tube
50 x 20 x 1.6 rectangular tube
50 x 20 x 2 rectangular tube
50 x 30 x 1.6 rectangular tube
50 x 30 x 2 rectangular tube
50 x 30 x 2.5 rectangular tube
50 x 30 x 3 rectangular tube
50 x 30 x 4 rectangular tube
50 x 40 x 1.6 rectangular tube
50 x 40 x 2 rectangular tube
50 x 40 x 2.5 rectangular tube
50 x 40 x 3 rectangular tube
50.8 x 25.4 x 1.6 rectangular tube
50.8 x 25.4 x 2 rectangular tube
50.8 x 25.4 x 2.5 rectangular tube
50.8 x 25.4 x 3 rectangular tube
50.8 x 25.4 x 4 rectangular tube
50.8 x 25.4 x 4.5 rectangular tube
50.8 x 38.1 x 1.6 rectangular tube
50.8 x 38.1 x 2 rectangular tube
50.8 x 38.1 x 2.5 rectangular tube
50.8 x 38.1 x 3 rectangular tube
50.8 x 1.6 square tube
50.8 x 2 square tube
50.8 x 2.5 square tube
50.8 x 3 square tube
50.8 x 3.5 square tube
50.8 x 4 square tube
50.8 x 4.5 square tube
50.8 x 5 square tube
57.2 x 19.1 x 1.6 rectangular tube
57.2 x 19.1 x 2 rectangular tube
57.2 x 19.1 x 2.5 rectangular tube
57.2 x 19.1 x 3 rectangular tube
57.2 x 19.1 x 4 rectangular tube
57.2 x 19.1 x 4.5 rectangular tube
57.2 x 1.6 square tube
57.2 x 2 square tube
57.2 x 3 square tube
60 x 20 x 1.6 rectangular tube
60 x 20 x 2 rectangular tube
60 x 20 x 2.5 rectangular tube
60 x 20 x 3 rectangular tube
60 x 20 x 4 rectangular tube
60 x 30 x 1.6 rectangular tube
60 x 30 x 2 rectangular tube
60 x 30 x 2.5 rectangular tube
60 x 30 x 3 rectangular tube
60 x 40 x 1.6 rectangular tube
60 x 40 x 2 rectangular tube
60 x 20 x 2.5 rectangular tube
60 x 20 x 3 rectangular tube
60 x 20 x 3.5 rectangular tube
60 x 20 x 4 rectangular tube
60 x 20 x 4.5 rectangular tube
60 x 1.6 square tube
60 x 2 square tube
60 x 2.5 square tube
60 x 3 square tube
60 x 3.5 square tube
60 x 4 square tube
60 x 4.5 square tube
60 x 5 square tube
61 x 1.6 square tube
61 x 2 square tube
61 x 3 square tube
61 x 4 square tube
61 x 4.5 square tube
61 x 5 square tube
63.5 x 12.7 x 1.6 rectangular tube
63.5 x 12.7 x 2 rectangular tube
63.5 x 12.7 x 2.5 rectangular tube
63.5 x 12.7 x 3 rectangular tube
63.5 x 12.7 x 4 rectangular tube
63.5 x 12.7 x 4.5 rectangular tube
63.5 x 25.4 x 1.6 rectangular tube
63.5 x 25.4 x 2 rectangular tube
63.5 x 25.4 x 2.5 rectangular tube
63.5 x 25.4 x 3 rectangular tube
63.5 x 38.1 x 1.6 rectangular tube
63.5 x 38.1 x 2 rectangular tube
63.5 x 38.1 x 2.5 rectangular tube
63.5 x 38.1 x 3 rectangular tube
63.5 x 38.1 x 3.5 rectangular tube
63.5 x 38.1 x 4 rectangular tube
63.5 x 38.1 x 4.5 rectangular tube
63.5 x 50.8 x 1.6 rectangular tube
63.5 x 50.8 x 2 rectangular tube
63.5 x 50.8 x 3 rectangular tube
63.5 x 1.6 square tube
63.5 x 2 square tube
63.5 x 2.5 square tube
63.5 x 3 square tube
63.5 x 3.5 square tube
63.5 x 4 square tube
63.5 x 4.5 square tube
63.5 x 5 square tube
70 x 20 x 1.6 rectangular tube
70 x 20 x 2 rectangular tube
70 x 20 x 2.5 rectangular tube
70 x 20 x 3 rectangular tube
70 x 2 square tube
70 x 2.5 square tube
70 x 3 square tube
70 x 3.5 square tube
70 x 4 square tube
70 x 4.5 square tube
70 x 5 square tube
75 x 50 x 1.6 rectangular tube
75 x 50 x 2 rectangular tube
75 x 50 x 2.5 rectangular tube
75 x 50 x 3 rectangular tube
75 x 50 x 3.5 rectangular tube
75 x 50 x 4 rectangular tube
75 x 50 x 4.5 rectangular tube
75 x 50 x 5 rectangular tube
and all known sizes until 300mm. 印刷　準備: いいえ
