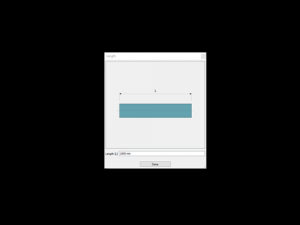

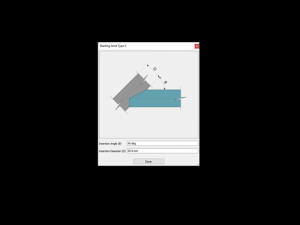

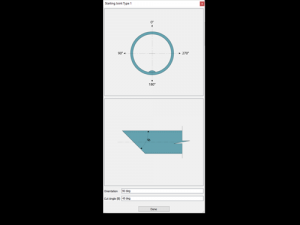

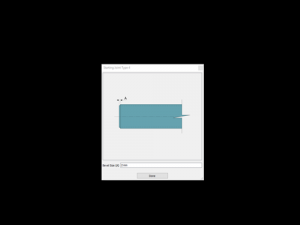

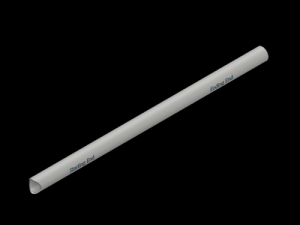

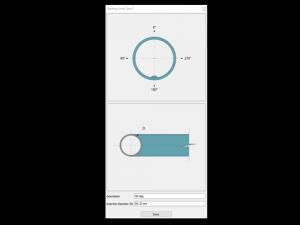

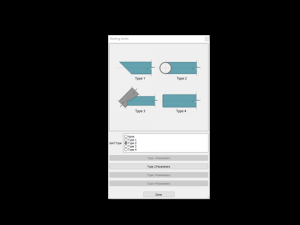

the tubing is modeled from a predefined list of sections. all parameters are driven from the included forms. please note, this is only hot-rolled welded tubing. this does not include seamless schedule pipe.

the list of predefined tubing:
ø15.9 x 1.6 thk round tube
ø15.9 x 2 thk round tube
ø19.05 x 1.6 thk round tube
ø19.05 x 2 thk round tube
ø21.4 x 1.6 thk round tube
ø21.4 x 2 thk round tube
ø21.4 x 2.5 thk round tube
ø21.4 x 3 thk round tube
ø22.23 x 1.2 thk round tube
ø22.23 x 1.6 thk round tube
ø25.4 x 1.6 thk round tube
ø25.4 x 2 thk round tube
ø25.4 x 2.5 thk round tube
ø25.4 x 3 thk round tube
ø26.99 x 1.6 thk round tube
ø26.99 x 2 thk round tube
ø26.99 x 2.5 thk round tub
ø26.99 x 3 thk round tube
ø31.8 x 1.6 thk round tube
ø31.8 x 2 thk round tube
ø31.8 x 2.5 thk round tube
ø31.8 x 3 thk round tube
ø34.13 x 1.6 thk round tube
ø34.13 x 2 thk round tube
ø34.13 x 2.5 thk round tube
ø34.13 x 3 thk round tube
ø34.13 x 3.5 thk round tube
ø34.13 x 4 thk round tube
ø38.1 x 1.6 thk round tube
ø38.1 x 2 thk round tube
ø38.1 x 2.5 thk round tube
ø38.1 x 3 thk round tube
ø38.1 x 4 thk round tube
ø38.1 x 1.6 thk round tube
ø42.86 x 1.6 thk round tube
ø42.86 x 2 thk round tube
ø42.86 x 2.5 thk round tube
ø42.86 x 3 thk round tube
ø42.86 x 4 thk round tube
ø44.45 x 1.6 thk round tube
ø44.45 x 2 thk round tube
ø48.5 x 1.6 thk round tube
ø48.5 x 2 thk round tube
ø48.5 x 2.5 thk round tube
ø48.5 x 3 thk round tube
ø48.5 x 3.5 thk round tube
ø48.5 x 4 thk round tube
ø48.5 x 4.5 thk round tube
ø50.8 x 1.6 thk round tube
ø50.8 x 2 thk round tube
ø50.8 x 2.5 thk round tube
ø50.8 x 3 thk round tube
ø50.8 x 3.5 thk round tube
ø50.8 x 4 thk round tube
ø57.15 x 1.6 thk round tube
ø57.15 x 2 thk round tube
ø57.15 x 2.5 thk round tube
ø57.15 x 3 thk round tube
ø57.15 x 4 thk round tube
ø60.33 x 1.6 thk round tube
ø60.33 x 2 thk round tube
ø60.33 x 2.5 thk round tube
ø60.33 x 3 thk round tube
ø60.33 x 3.5 thk round tube
ø60.33 x 4 thk round tube
ø60.33 x 4.5 thk round tube
ø63.5 x 1.6 thk round tube
ø63.5 x 2 thk round tube
ø63.5 x 2.5 thk round tube
ø63.5 x 3 thk round tube
ø63.5 x 3.5 thk round tube
ø63.5 x 4 thk round tube
ø63.5 x 4.5 thk round tube
ø76.2 x 1.6 thk round tube
ø76.2 x 2 thk round tube
ø76.2 x 2.5 thk round tube
ø76.2 x 3 thk round tube
ø76.2 x 3.5 thk round tube
ø76.2 x 4 thk round tube
ø76.2 x 4.5 thk round tube
ø76.2 x 5 thk round tube
ø76.2 x 6 thk round tube
ø88.9 x 2 thk round tube
ø88.9 x 2.5 thk round tube
ø88.9 x 3 thk round tube
ø88.9 x 3.5 thk round tube
ø88.9 x 4 thk round tube
ø88.9 x 4.5 thk round tube
ø88.9 x 5 thk round tube
ø88.9 x 6 thk round tube
ø95 x 2 thk round tube
ø95 x 3 thk round tube
ø95 x 3.5 thk round tube
ø95 x 4 thk round tube
ø101.6 x 1.6 thk round tube
ø101.6 x 2 thk round tube
ø101.6 x 2.5 thk round tube
ø101.6 x 3 thk round tube
ø101.6 x 3.5 thk round tube
ø101.6 x 4 thk round tube
ø101.6 x 4.5 thk round tube
ø101.6 x 5 thk round tube
ø101.6 x 6 thk round tube
ø114.3 x 2 thk round tube
ø114.3 x 2.5 thk round tube
ø114.3 x 3 thk round tube
ø114.3 x 3.5 thk round tube
ø114.3 x 4 thk round tube
ø114.3 x 4.5 thk round tube
ø114.3 x 5 thk round tube
ø114.3 x 6 thk round tube
ø127 x 2 thk round tube
ø127 x 2.5 thk round tube
ø127 x 3 thk round tube
ø127 x 3.5 thk round tube
ø127 x 4 thk round tube
ø127 x 4.5 thk round tube
ø127 x 5 thk round tube
ø127 x 6 thk round tube
ø139.7 x 3 thk round tube
ø139.7 x 3.5 thk round tube
ø139.7 x 4 thk round tube
ø139.7 x 4.5 thk round tube
ø139.7 x 5 thk round tube
ø139.7 x 6 thk round tube
ø152.4 x 2 thk round tube
ø152.4 x 2.5 thk round tube
ø152.4 x 3 thk round tube
ø152.4 x 3.5 thk round tube
ø152.4 x 4 thk round tube
ø152.4 x 4.5 thk round tube
ø152.4 x 5 thk round tube
ø152.4 x 6 thk round tube
ø152.4 x 8 thk round tube
ø152.4 x 10 thk round tube
ø165.1 x 3 thk round tube
ø165.1 x 3.5 thk round tube
ø165.1 x 4 thk round tube
ø165.1 x 4.5 thk round tube
ø165.1 x 5 thk round tube
ø165.1 x 6 thk round tube
ø177 x 3 thk round tube
ø177 x 4 thk round tube
ø177 x 4.5 thk round tube
ø177 x 6 thk round tube
ø190 x 8 thk round tube
ø190 x 10 thk round tube
ø193.7 x 3 thk round tube
ø193.7 x 3.5 thk round tube
ø193.7 x 4.5 thk round tube
ø193.7 x 5 thk round tube
ø193.7 x 6 thk round tube
ø204 x 3.5 thk round tube
ø204 x 4.5 thk round tube
ø204 x 6 thk round tube
ø219 x 3.5 thk round tube
ø219 x 4.5 thk round tube
ø219 x 6 thk round tube
ø219 x 8 thk round tube
ø219 x 10 thk round tube
ø244 x 4.5 thk round tube
ø244 x 6 thk round tube
ø244 x 8 thk round tube
ø244 x 10 thk round tube
ø273 x 4.5 thk round tube
ø273 x 6 thk round tube
ø273 x 8 thk round tube
ø273 x 10 thk round tube
ø324 x 4.5 thk round tube
ø324 x 6 thk round tube
ø324 x 8 thk round tube
ø324 x 10 thk round tube
ø356 x 4.5 thk round tube
ø356 x 6 thk round tube
ø356 x 8 thk round tube
ø356 x 10 thk round tube
ø406 x 4.5 thk round tube
ø406 x 6 thk round tube
ø406 x 8 thk round tube
ø406 x 10 thk round tube
ø457 x 4.5 thk round tube
ø457 x 6 thk round tube
ø457 x 8 thk round tube
ø457 x 10 thk round tube
ø508 x 4.5 thk round tube
ø508 x 6 thk round tube
ø508 x 8 thk round tube
ø508 x 10 thk round tube 印刷　準備: いいえ
