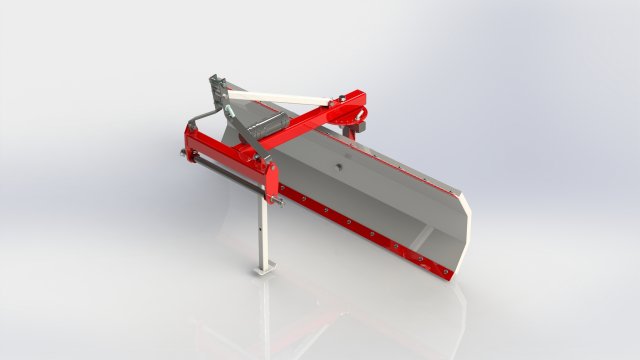

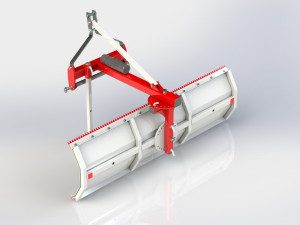

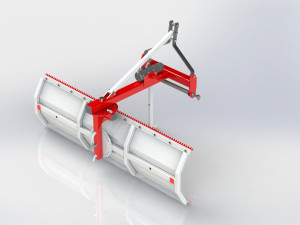

WG 1015 - Rear mounted blade 100 - 250 cm 3D Model

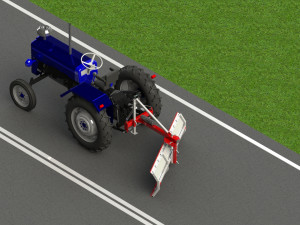

If you need tools for landscaping, snow removal, forage work, digging a pit, terracing, dam construction, road repairs or general farm maintenance, you need a rear mounted blade. We offer a model of different widths from 100 to 250 cm, for tractors with a capacity of 30 to 92 hp. All devices are 360 ° tilt-adjustable and Cat attachments. 1 or Cat. 2, with Quick Hitch capability.

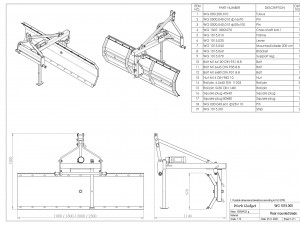

This is full solidworks model. Developed as design documentation for launch into production of this machine. According to the drawings and models, you can implement both single and serial production! This lot contains a complete set of documentation. Models and drawings of all details made in SolidWorks 2015. Design documentation for launch into production of this machine (in formats: *.sldprt; *.slddrw; *.sldasm; *.igs; *.stp; *.stl; oll cad drawings in *.pdf; programs for plasma (laser) saved in the format: *.DXF)

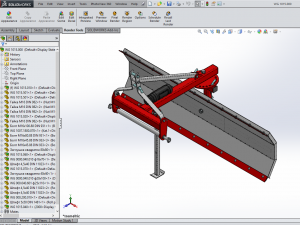

Modeled in SolidWorks 2015. The model contains the most popular formats: SolidWorks: *.sldprt *.slddrw *.sldasm (NATIVE) IGES: *.iges *.igs STEP: *.step *.stp Stereolithography: *.stl All CAD Drawings are saved in format *.PDF Programs for plasma (laser) saved in the format: *.DXF
