Presowing kompaktor WG 0017 are machines designed for pre-sowing preparation of the soil after ploughing. During one run the soil is perfectly processed to the state required for sowing of crops.

Performs 6 operations in one pass:
1. Basic soil levelling zone. Precisely leveled soil surface allows uniform subsequent consolidation and loosening the seedbed.
2. Soil pre-consolidation zone by the front roller. The front roller crumbs ****s on the surface, but at the same time it consolidates the soil and restores the soil capillarity.
3. Seedbed zone. The soil is loosened by the share section to the set depth. The depth should be the same as the future sowing depth. Arrow shares allow full-area undercut and weed control.
4. Wave-levelling zone behind a share loosening section.
5. Rear roller soil consolidation zone. The roller finely crumbles ****s and ensures the final consolidation of the seedbed so that the soil capillarity is fully restored. Intensive soil capillarity moisture rise ensures good emergence of plants even in the dry season.
6. Final soil levelling zone. The rear bar ensures a perfect surface level with minimum ****s for subsequent sowing.

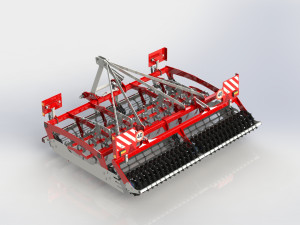

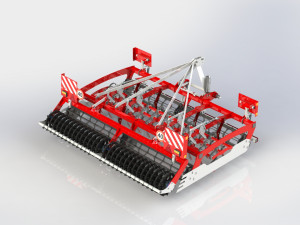

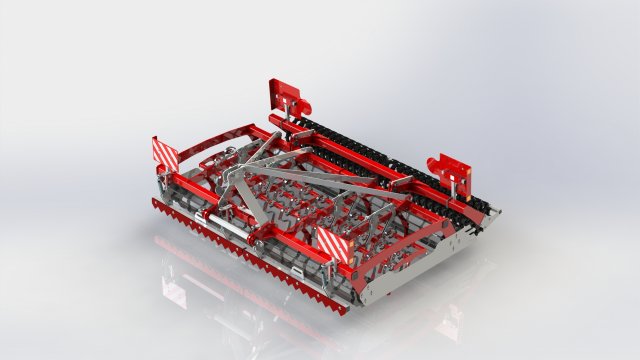

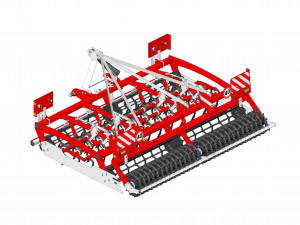

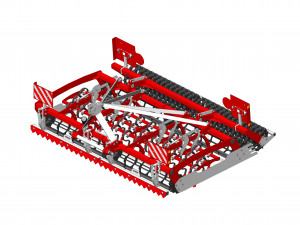

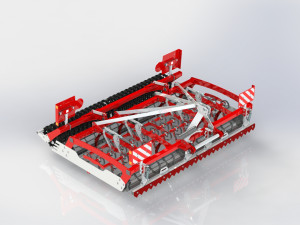

This is full solidworks model.
Developed as design documentation for launch into production of this machine. According to the drawings and models, you can implement both single and serial production!

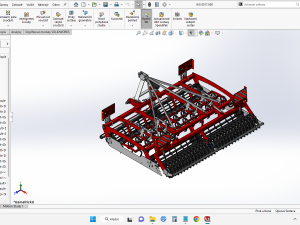

This lot contains a complete set of documentation. Models and drawings of all details made in SolidWorks 2020.
Design documentation for launch into production of this machine (in formats: *.sldprt; *.slddrw; *.sldasm; *.igs; *.stp; *.stl; oll cad drawings in *.pdf; programs for plasma (laser) saved in the format: *.DXF)

The model contains the most popular formats:
SolidWorks: *.sldprt *.slddrw *.sldasm (NATIVE)
IGES: *.iges *.igs
STEP: *.step *.stp
Stereolithography: *.stl

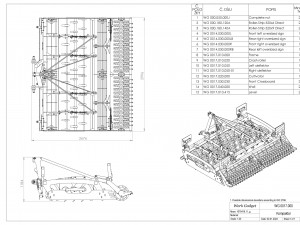

All CAD Drawings are saved in format *.PDF
Programs for plasma (laser) saved in the format: *.DXF
