WG 0006 - High speed combination plow 3K 3D Model

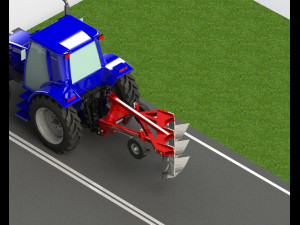

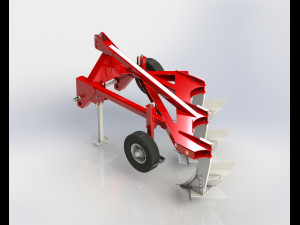

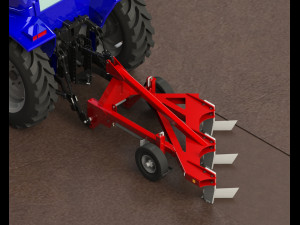

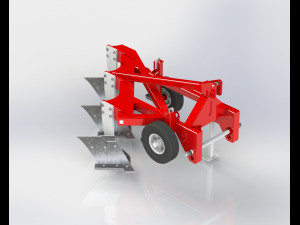

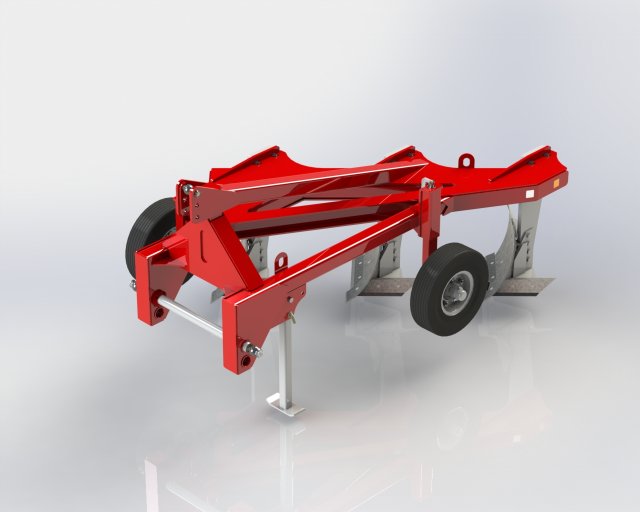

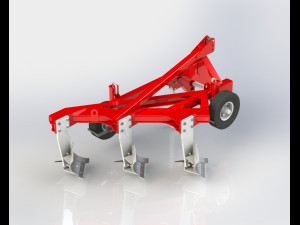

High speed combination plow WG 0006.003 intended for plowing for grain and industrial crops, to a depth of 16-35 cm of soils not clogged with stones, flagstone and other obstacles, with a resistivity of up to 0.1 MPa, soil hardness up to 4 MPa and moisture up to 30%.

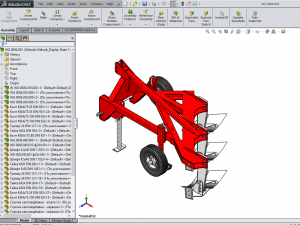

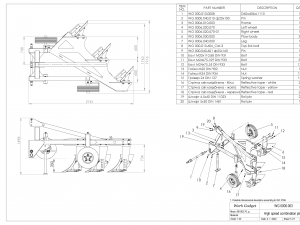

This is full solidworks model. Developed as design documentation for launch into production of this machine. According to the drawings and models, you can implement both single and serial production! This lot contains a complete set of documentation. Models and drawings of all details made in SolidWorks 2015. Design documentation for launch into production of this machine (in formats: *.sldprt; *.slddrw; *.sldasm; *.igs; *.stp; *.stl; oll cad drawings in *.pdf; programs for plasma (laser) saved in the format: *.DXF)

Modeled in SolidWorks 2015. The model contains the most popular formats: SolidWorks: *.sldprt *.slddrw *.sldasm (NATIVE) IGES: *.iges *.igs STEP: *.step *.stp Stereolithography: *.stl All CAD Drawings are saved in format *.PDF Programs for plasma (laser) saved in the format: *.DXF
