[¯`·._.·[  V4  JLB CHEETAH RC CAR TRUGGY 1:8  ]·._.·´¯]

JLB CHEETAH V4  is the Updated version of the V2.0 / V2.5 / V3 / V3.5

All parts are compatibles betweenV2.0 / V2.5 / V3 / V3.5 (rétro compatibility)

No need to reprint everything.

This is the complete JLB CHEETAH V4 printed version, ready to run.

• Lucky hazard It's now compatible with Alieeexpressss metal steering linkages 105mm

• New DIRECT DRIVE STEERING SYSTEM Best for Bash

• New REVERSE ACKERMANN STEERING SYSTEM Best for max angles

• Reinforced Shocks Absorber Tower

• Reinforced Motor Mount and Transmission Cover

• Reinforced Rims

• New Steering Cup Hubs and linkages (+metal Linkages 105mm)

• New Chassis

BUILD GUIDE :

https://docs.google.com/presentation/d/1jabhHdwHruR_a4ibou3fMm3Z3C0JivmusydT-Vo3oH4/edit?usp=sharing

TEST DRIVE :

https://www.youtube.com/watch?v=OAT00DGrQRY

BUILDING VIDEO LINK :

https://youtu.be/ltlX8YH-RXE

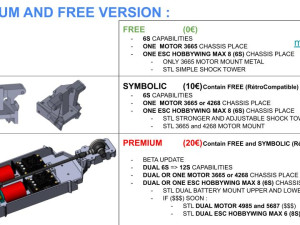

PREMIUM VERSION GOT :

• New DIRECT DRIVE STEERING SYSTEM Best for Bash

• New REVERSE ACKERMANN STEERING SYSTEM Best for max angles

• New Steering Cup Hubs and linkage

• New additional Battery Side Mount

• New Slim / Medium / Wide / Extra Wide Chassis

• New Body Mount + Body upper protection

• New Wheelie Bar

• All Type Motors Mounts D36 D42 D49++

• All RIMS Sizes and offsets STL kit

• DUAL Motors Capability PLA or Metal

• DUAL Motors Transmission Cover PLA or Metal

• Big ESC Hobby wing Max8(6S) or Max6(8S) Dual Place Capability

• FPV Protection

• Lower Protection Pate

• Gopro mount

• More adjustment holes

• Fresh Update and Upgrade

• Thanks from the creator

PREMIUM LINKS :

Official website

https://myshopkit.fr/

NEEDS :

-   TPU           ( 500g )

Arms

Bumpers

-   PLA Plus      (  1Kg )

All the Rest

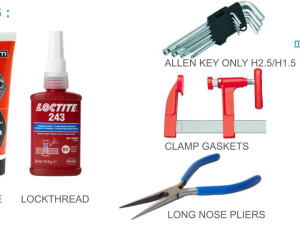

TOOLS :

Hallen H2.5mm(for M3 Screws) / H1.5(for Pinion)

Long Nose Pliers

ThreadLocker

Grease

Clamp Gaskets

HARDWARE STORE :

Rolling 6800ZZ ABEC 7     ( X 8)

Metal Steering Linkages 105mm ( X 2)

Washers M3     ( X 100)

Lock Nuts M3       ( X 100)

Screws

M3 x 5mm Hexa   ( X 8)  (Motor Mount)

M3 x 8mm Hexa   ( X 10 (Direct drive Steering)

M3 x 14mm Hexa ( X 10)   (Steering Cup Hub)

M3 x 20mm Hexa ( X 60)  (ALL THE REST)

M3 x 30mm Hexa ( X 2)   (Shocks Absorbers / Reverse Ackermann Steering)

M3 x 40mm Hexa ( X 24)      (ARMS / Reverse Ackermann Steering)

TAGS :

- JLB CHEETAH

- Ender 3 compatible

- PreOriented STL PARTS

- 3D Printed RC Car

- Reverse Ackermann Steering Compact System or direct drive steering

- Full Metal transmission

- Metal Steering Linkages Compatible 105mm

- Brushless Motor 3650 up to 4268  (3650 min recommended 3200KVmax)

- 3S -4S - 6S

- DUAL3S = 6S  /  DUAL4S = 8S  /  DUAL6S = 12S (soon DUAL8S = 16S $$$)

- ESP Front Gyroscope

- Pinion and Gearing 0.8 Module (32 Diametral Pitch) - No cogging issues

- Metal Differential mechanism Central axis Central drive shaft Motor-Gear

- Printed Beadlock Rims 2.2p or 3.2p -No Ballooning  issues for 2.2p 3.2p Tires

- Dogbones Haxa 17mmm

- Strong modulable design easy replace

- Standards Parts

- 4 Arms = 1 Arm (Lowers and Uppers)

- 4WD -2WD -4x4 -2x4

- With or Without Anti roll Bar

- 1:8 Hardware

- No Glue Only M3 Screws Washers and LockNuts

- LED Light System Front and Rear

- Drift

- GoPro Mount

- Body Mount + upper protection

- Wheelie Bar

TAGS:

RC car, jlb, 1:8, 4WD, Ender3, CHEETAH
