security handle for velux windows free 3d print model Free 3D Print Model

$0.00
Remove Bookmark Bookmark This Item
  • Available formats:
    stl: stl 117.51 kb
  • Collection:
    No
  • Width in centimeters:
    6.3 X 12.1CM
  • Units in inche:
    XXX
  • Width in millimeters:
    XXX
  • Height in millimeters:
    XXX
  • Depth in millimeters:
    XXX
  • Print Ready:
  • 3D Scan:
    No
  • Adult content:
    No
  • PBR:
    No
  • Views:
    7687
  • Date:
  • Item ID:
    230656
  • Rating:

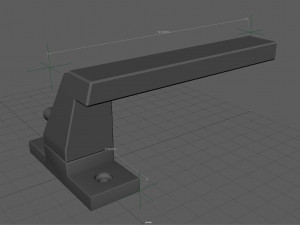

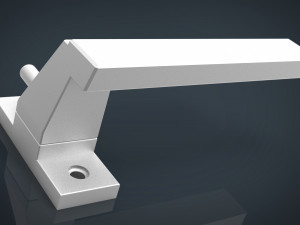

stl security handle for velux windows

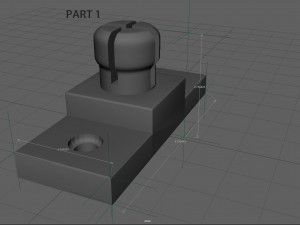

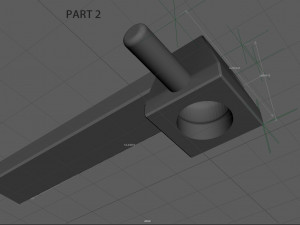

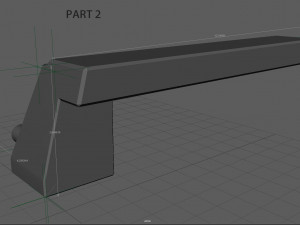

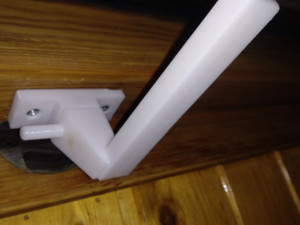

own desing (not perfect but funcional) 2 parts .stl files in winrar archives

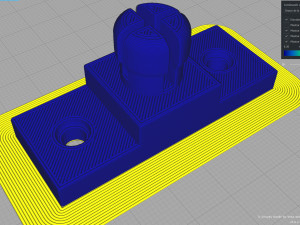

part1: +- 01h:03m without support +10% infill part2: +- 01h:44m with support +30% infill speed: 30 mm/s

.2 resolution

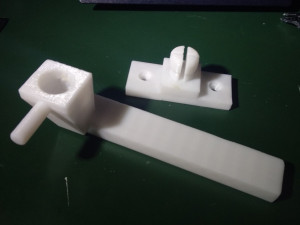

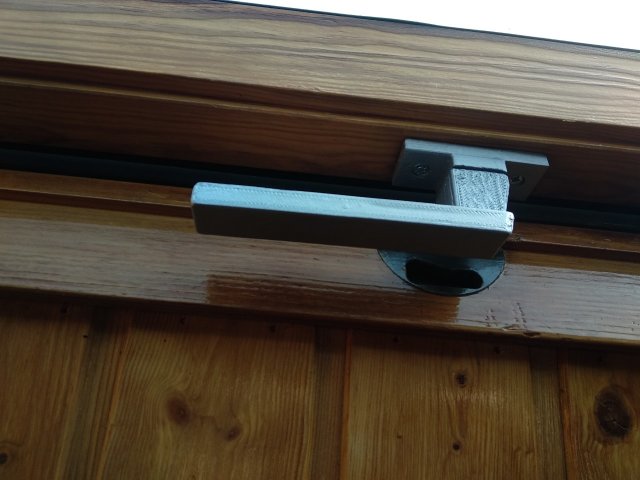

printed in anycubic kossel plus

not for resale thanks!!!
Need more formats?
If you need a different format, please send us a Conversion Request. We can convert 3D models to: .stl, .c4d, .obj, .fbx, .ma/.mb, .3ds, .3dm, .dxf/.dwg, .max. .blend, .skp, .glb. We do not convert 3d scenes and solid formats such as .step, .iges, .stp, .sldprt etc!

Download security handle for velux windows free 3d print model Free 3D Print Model stl From SanchiEsp

windows velux handle mecanism security wood part machine funcional printable ready house diy ventana pieza desing industrial accessories
philippe.vijghen
philippe.vijghen philippe.vijghen  2019-04-18
This is a very very interesting piece of work has Velux has stopped manufacturing the parts for their older Velux windows.

I am prepared to print it (got a quote of 109 euros at a local 3D print shop) ...but there is one thing I actually don't understand: how are the two parts security connected one to the other. When looking at the design, I have the feeling that one has to "clip" the part in the other one.

This raises two questions:
1/ is it required that the print material would be flexible enough in order to be able to click the two parts together?
2/ if it can be clipped "in", is it really a "security" handle? Isn't there a risk that it would be possible to force the window and "unclick it"?

Let's see if I get some answers to those two questions.

Imho, a better design would have been to make the two parts easy to connect at another angle (e.g. rotating further to the right) but to have a non cynlindric design for the interconnection, by example with a narrower parts that would prevent to "unplug" the parts.
