हिंदीSample Assembly for New Framed Solar Panel 3D Model
- Available formats: blend: blend 1.66 MB
Render: Eeveejpg: jpg 100.99 MB
Render: Standardfbx: fbx 26.00 MB
Render: Standardobj: obj 5.92 MB
Render: Standard
- Polygons:270955
- Vertices:375928
- Animated:No
- Textured:
- Rigged:No
- Materials:
- Low-poly:No
- Collection:No
- UVW mapping:No
- Plugins Used:No
- Print Ready:No
- 3D Scan:No
- Adult content:No
- PBR:
- AI Training:No
- Geometry:Polygonal
- Unwrapped UVs:Unknown
- Views:533
- Date: 2024-11-23
- Item ID:542416
- Rating:

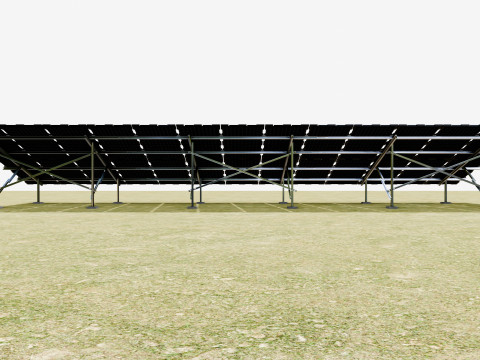

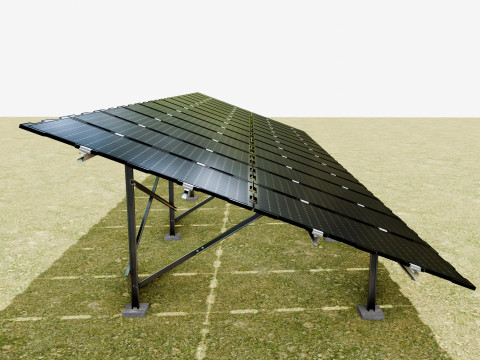

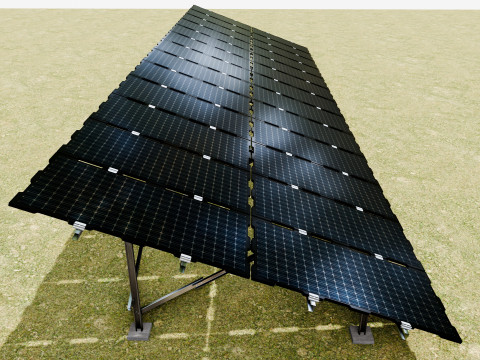

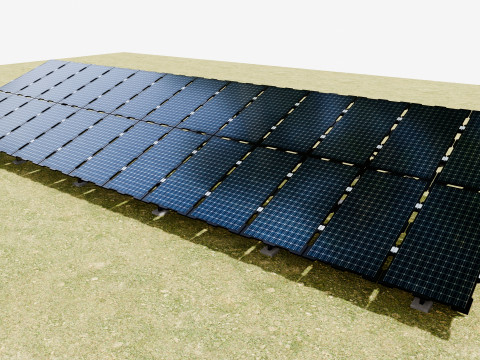

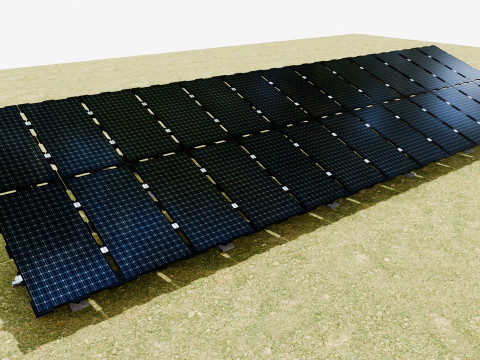

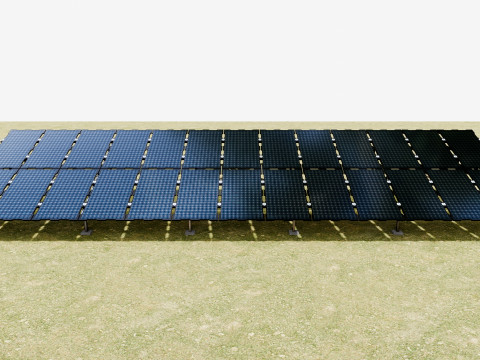

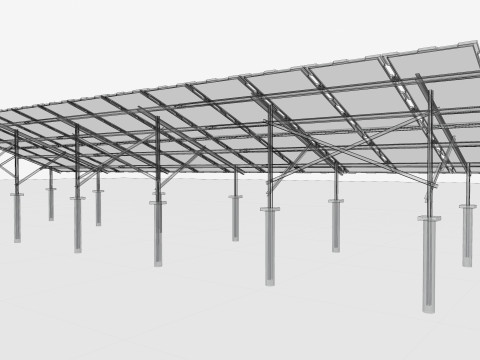

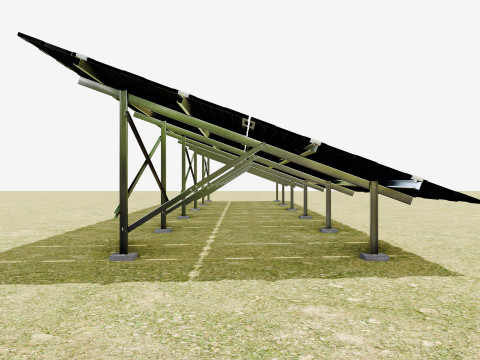

Sample Assembly for New Framed Solar Panel

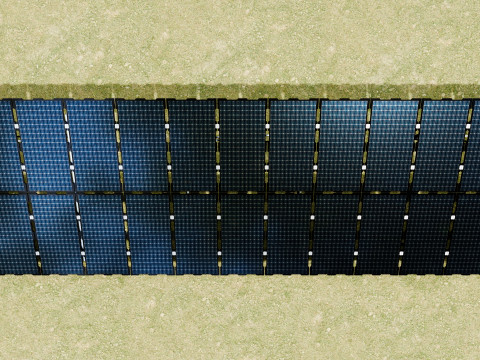

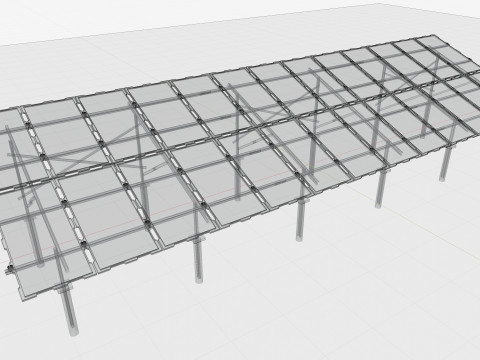

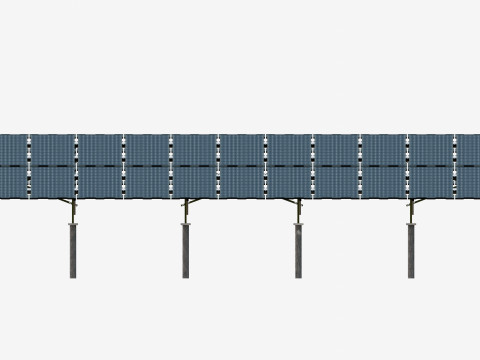

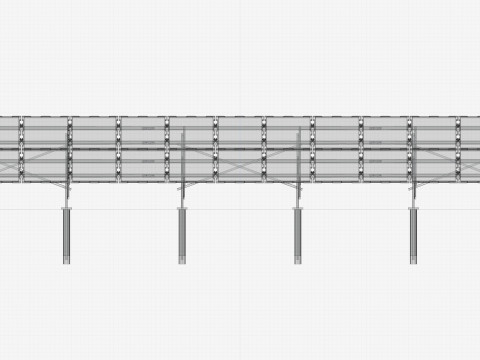

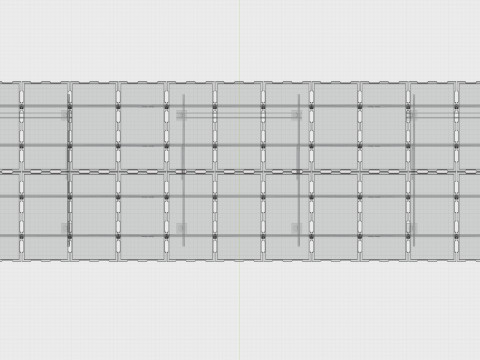

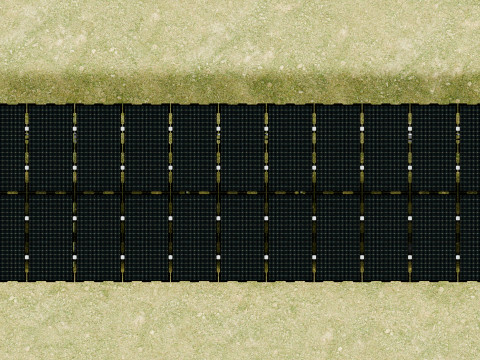

2x13 Vertical Solar Glass Panel Layout
Ground Connection Type; With Concrete Friction Pile
Panel Dimensions : 2278 x 1134 x 35 mm
Panel Power : 550Wp
1 solar panel steel construction produces 14,3 kWp power in 1 hour

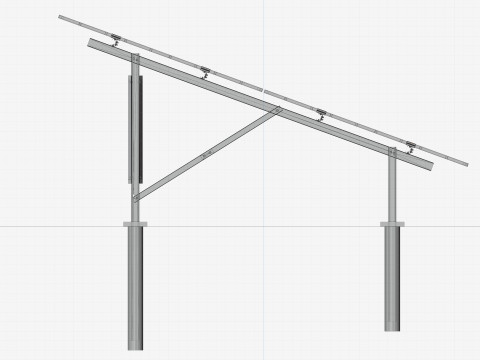

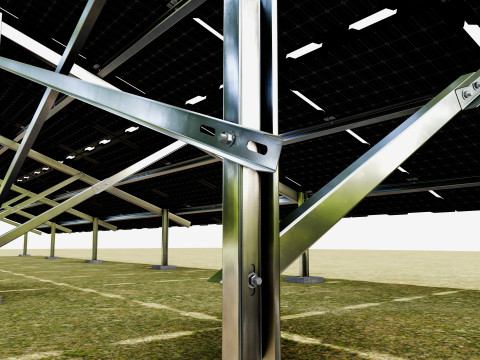

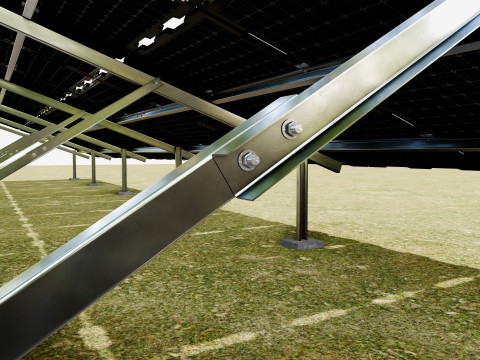

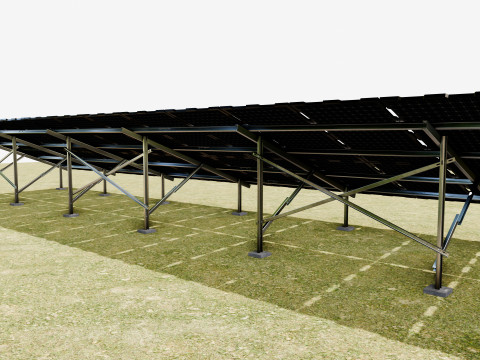

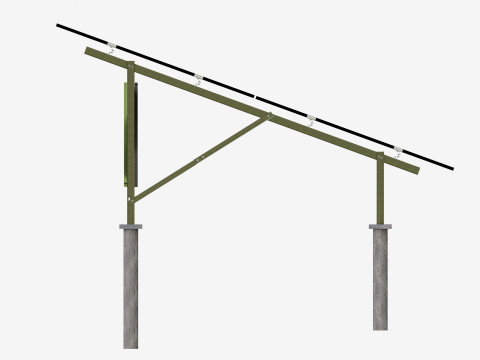

The system consists of 6 axles and the distance between each axle is 2650 mm.
Horizantal angle of panel 20°
The closest distance of the panels to the floor 600 mm.
New Frame Solar Panel
1- 550 Watt 2278x1134x35mm New Frame Solar Panel
2- 630 Watt 2465x1134x35mm New Frame Solar Panel
3- 320 Watt 1950x990x35mm New Frame Solar Panel
4- 160 Watt 1480x670x35mm New Frame Solar Panel
- Bifacial Solar Panel
- Modern New Design Frame

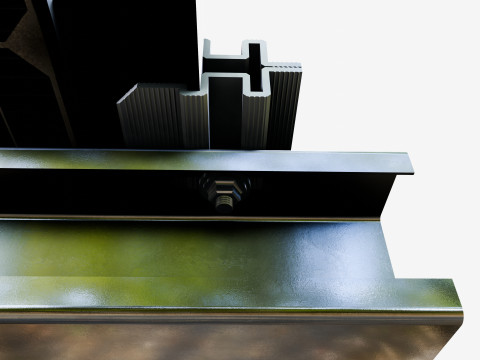

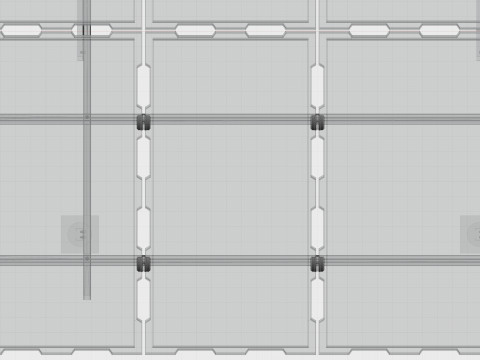

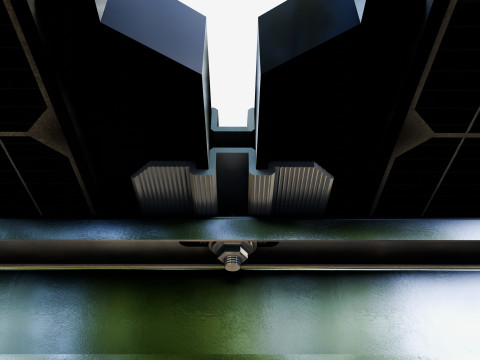

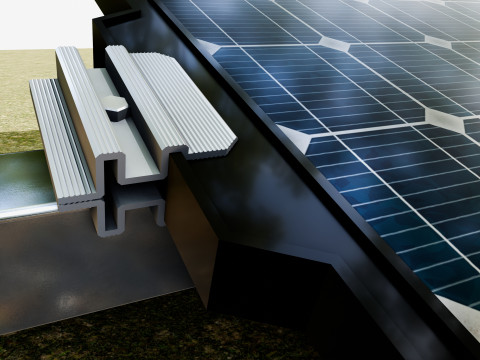

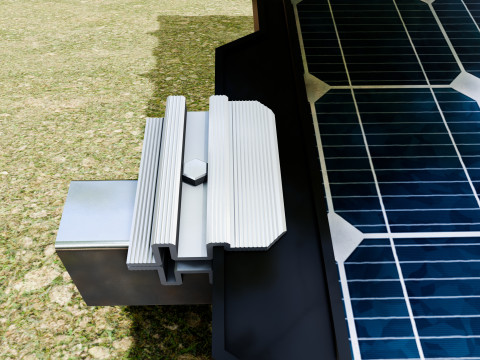

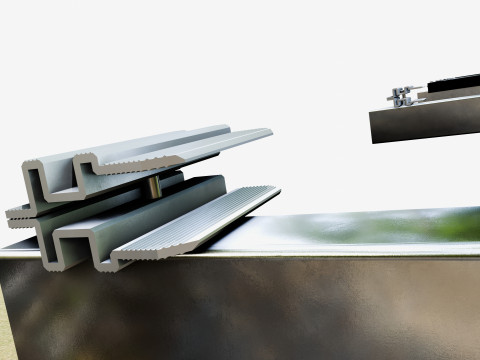

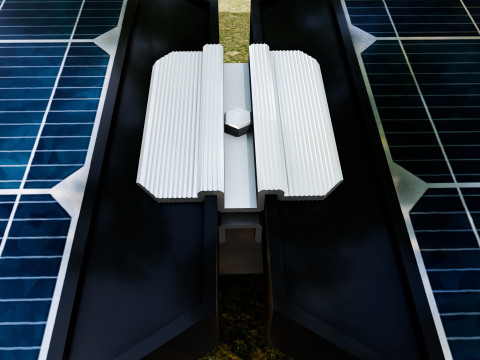

- Middle and End Clamp Compatible With the New Frame Design

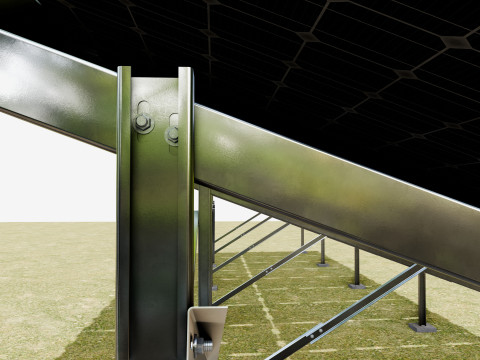

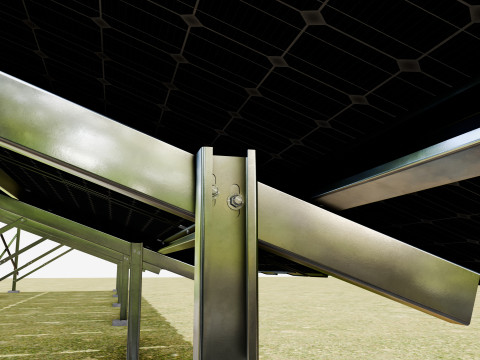

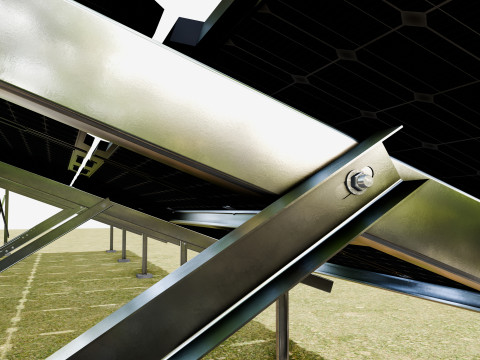

- Hexagon Head Bolt, Large Diameter Washer and Flanged Nut Design
Hexagon head bolt; ideal for the bottom tightening method
**Assembly Example Made With 550W Panel

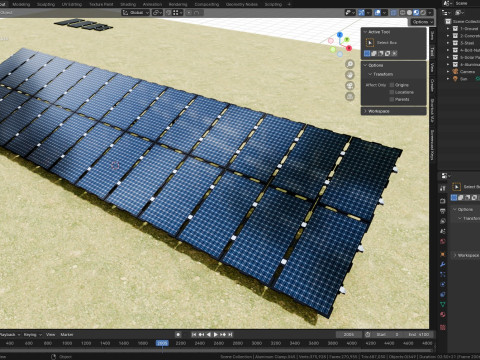

Prepared With BLENDER Version 4.0.1
Polygons : 270955
Vertices : 375928
Objects : 649
Print Ready: NoIf you need a different format, please send us a Conversion Request. We can convert 3D models to: .stl, .c4d, .obj, .fbx, .ma/.mb, .3ds, .3dm, .dxf/.dwg, .max. .blend, .skp, .glb. We do not convert 3d scenes and solid formats such as .step, .iges, .stp, .sldprt etc!
