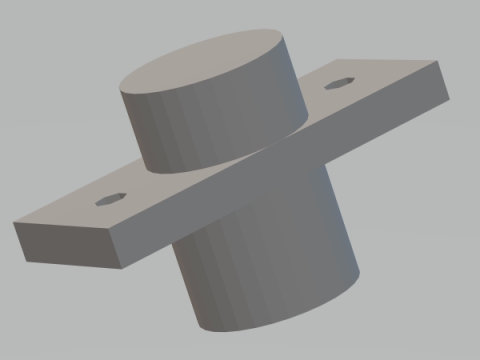

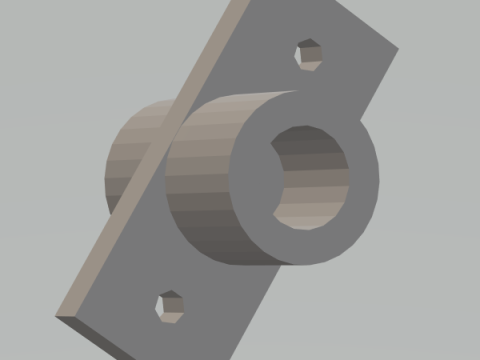

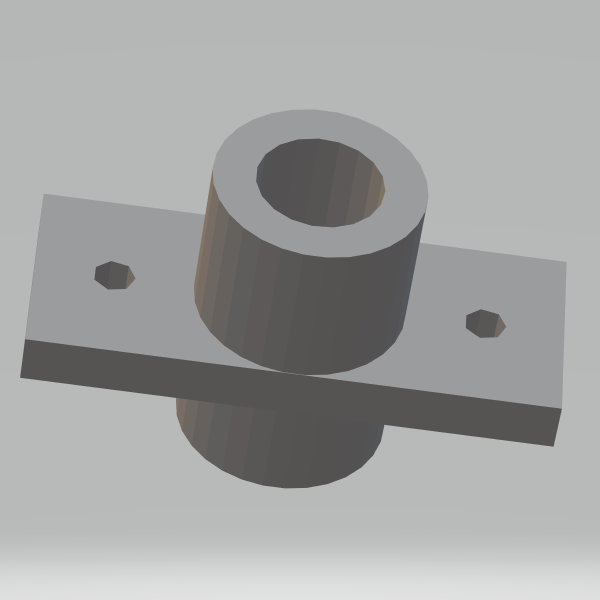

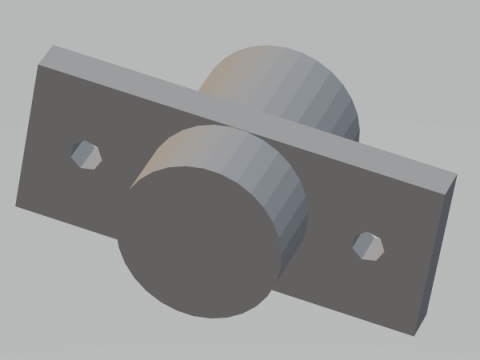

Linear Shaft Support Bracket 12 mm

Linear Shaft Support Bracket 12 mm for 12 mm rod shaft use for machine and Engineering works and DIY projects

Parameters of Linear Shaft Support Bracket 12 mm
shaft diameter = 12 mm
shaft radius = shaft diameter / 2 mm
bracket height = 30 mm
bracket width = 20 mm
base length = 50 mm
base width = 20 mm
base height = 5 mm
mounting hole diameter = 4 mm
mounting hole radius = mounting hole diameter / 2 mm
mounting hole distance = 35 mm Distance between mounting hole centers

PRODUCT DESCRIPTION

The model is fully ready for 3D printing
The format included: STL,
This is the final version of this model
TERMS OF USE:
This product is for personal use only. You may not share or resell these file(s) in any way.
Thanks very much for viewing my model.

USE FILAMENT MATERIALS : PETG’ PP
PETG Filament
UV Resistant: Many models deteriorate if left in direct sunlight, with PETG being the main exception in 3D printing.
Water Resistant: PETG models can be used to store liquids or be immersed in water without deteriorating.

PP Filament
Chemical Resistant: PP is highly resistant to chemicals and cannot be bonded to anything other than itself.
Fatigue Resistant: PP models do not break easily from repeated flexural forces.
