enclosure 3d printer artillery sidewinder x1 3Dプリントモデル

the archive contains:
- a folder contains the dxf files for the non-printable parts, precisely all the walls of the case you can realize in polycarbonate, plexyglass or the material you prefer;

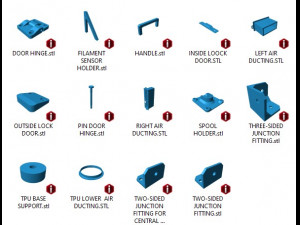

- a folder contains the stl files for the printable parts, with all the structural junction and accessories needs to assembly the enclosure.

to assemble the case you will need some additional things which you can see on the attached image and you can read on the list below:

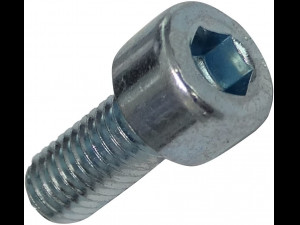

n.85 cylindrical allen bolt m5x15 + nut
n.5 cylindrical allen bolt m5x20 + nut
n.6 cylindrical allen bolt m4x10 + nut
n.2 cylindrical allen bolt m3x10
n.1 threaded rod m3 x 10 mm

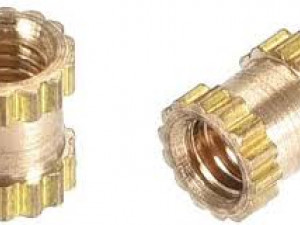

n.2 knurled threaded insert m5
n.2 knurled threaded insert m4
n.1 knurled threaded insert m3

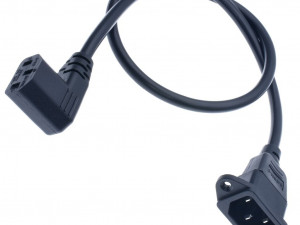

n.1 iec cable
n.1 cylindrical pipe d.16 mm / length 500 mm
n.2 cylindrical magnets d.6 mm / lenght 8 mm
n.2 non-stainless steel nuts m4 (8 mm width)

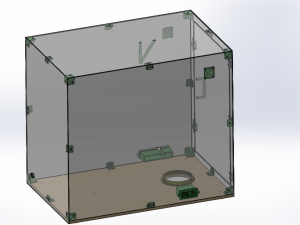

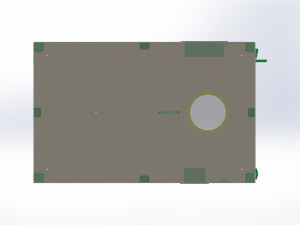

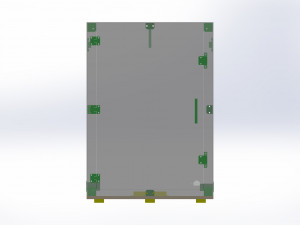

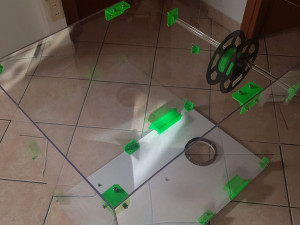

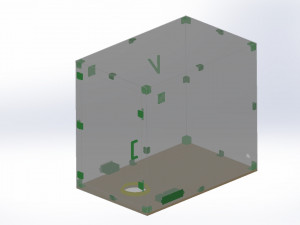

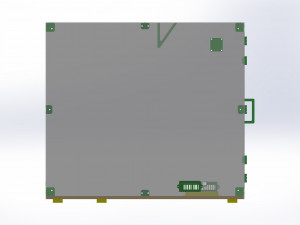

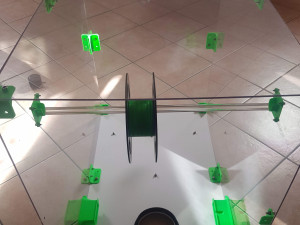

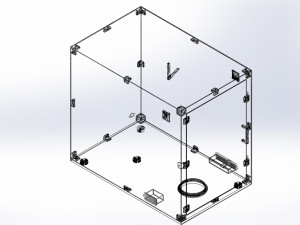

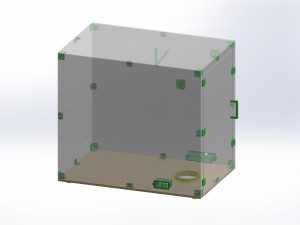

please note: for assembly you must refer to the rendered images because the final project is slightly different from the attached photographs 印刷　準備: いいえ
