हिंदीAllround scaffolding base plates 3D Model
- Available formats: blend: blend 3.92 MBdae: dae 555.97 kbobj: obj 315.78 kbstep: step 1.52 MBsvg: svg 1.11 MBstl: stl 427.32 kb
- Polygons:13357
- Vertices:34103
- Animated:
- Textured:No
- Rigged:No
- Materials:
- Low-poly:No
- Collection:No
- UVW mapping:No
- Plugins Used:No
- Print Ready:No
- 3D Scan:No
- Adult content:No
- PBR:No
- Geometry:Polygonal
- Unwrapped UVs:Unknown
- Views:2578
- Date: 2020-11-04
- Item ID:320263
- Rating:

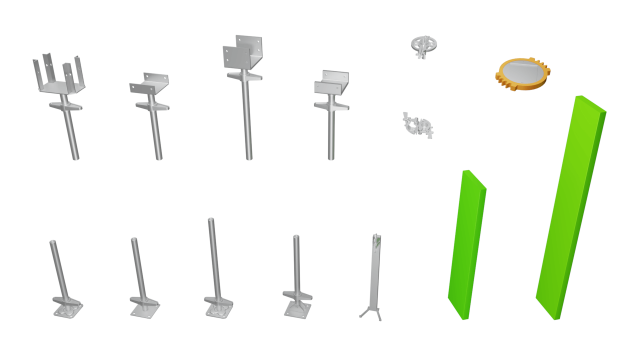

allround base plates are 14 components, that belong to layher catalogue, them preserved main lengths. each component have an animation in blender with the main funcionallity like example the maximum spindle nut travel of base plate 60. they were designed with freecad and the item svg textures contains all fcstd files with each compontent plain.
component list
Print Ready: No
Read morecomponent list

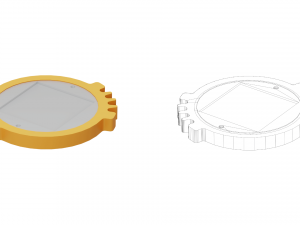

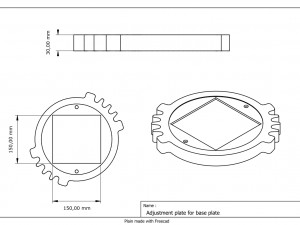

- adjustment plate for base plate

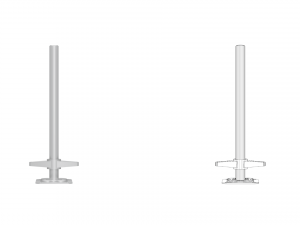

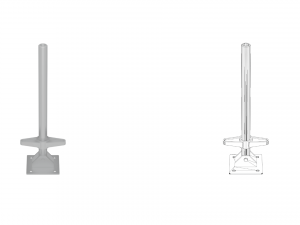

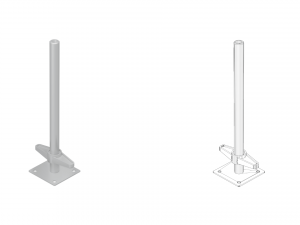

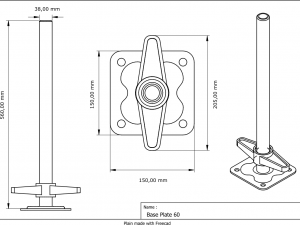

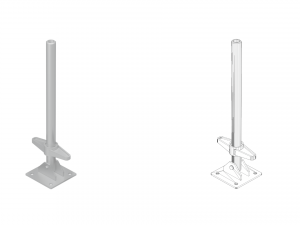

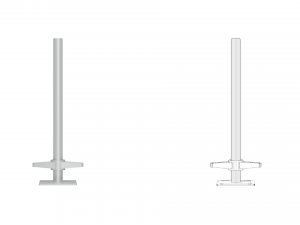

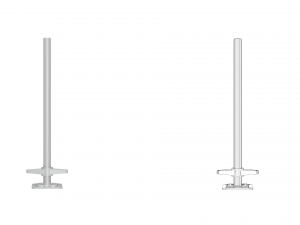

- base plate 60

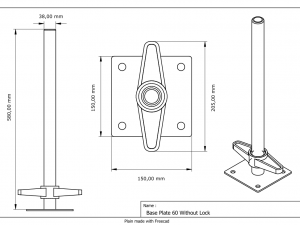

- base plate 60 without lock

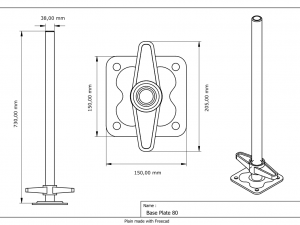

- base plate 80

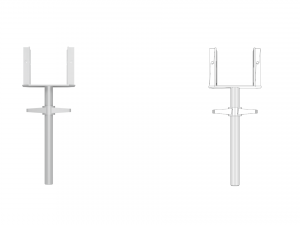

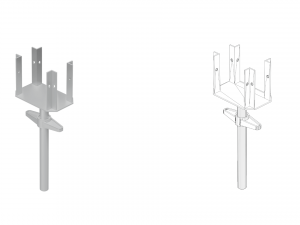

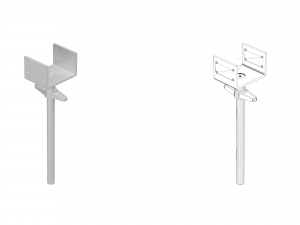

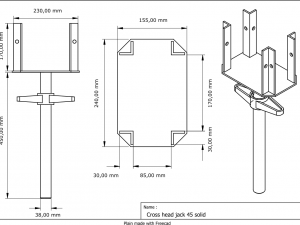

- cross head jack 45 solid

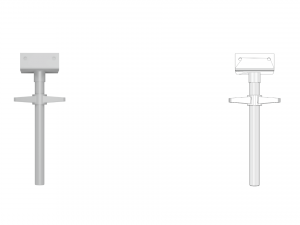

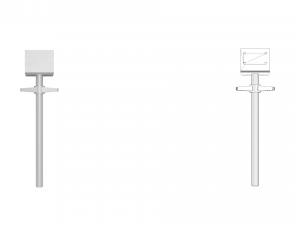

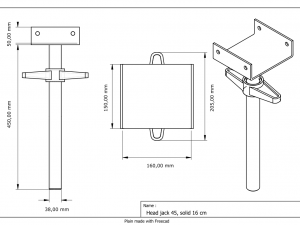

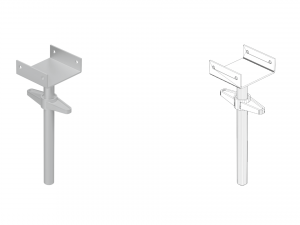

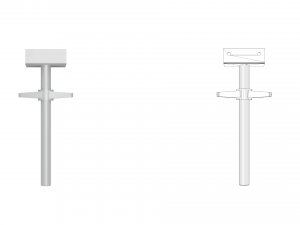

- head jack 45, solid 16 cm

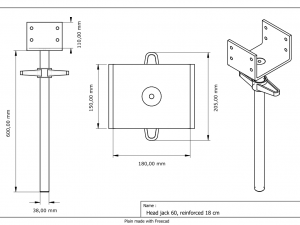

- head jack 60, reinforced 18 cm

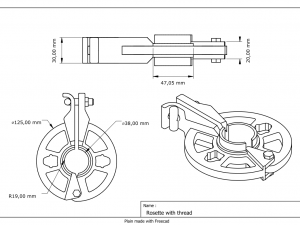

- rosette with thread

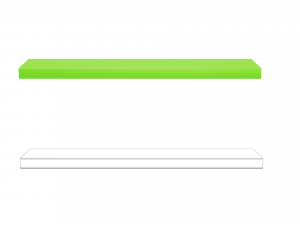

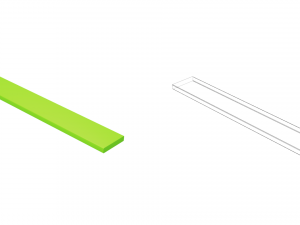

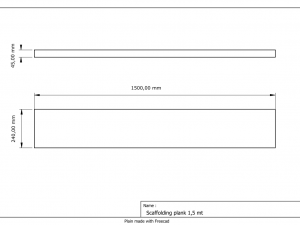

- scaffolding plank 1,5 mt

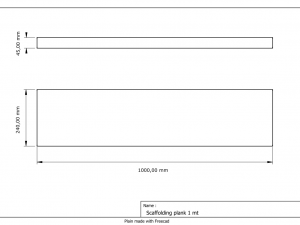

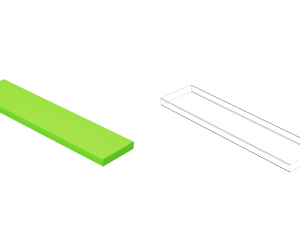

- scaffolding plank 1 mt

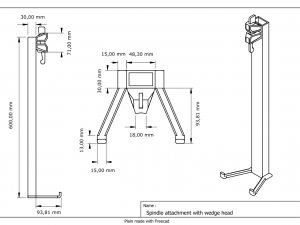

- spindle attachment with wedge head

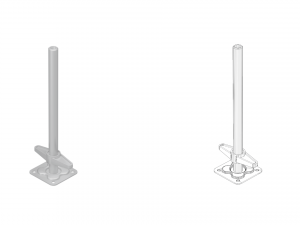

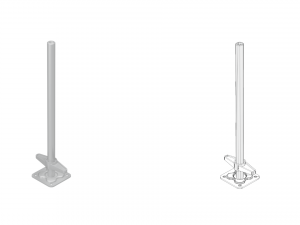

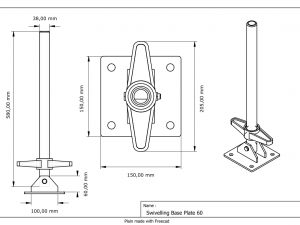

- swivelling base plate 60

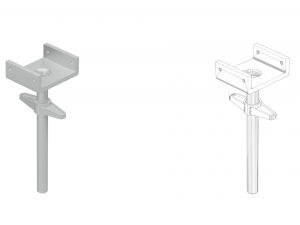

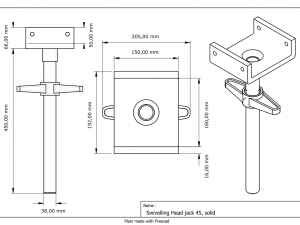

- swivelling head jack 45, solid

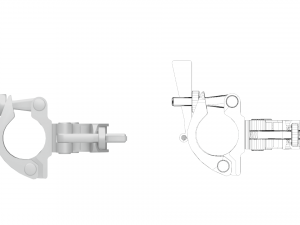

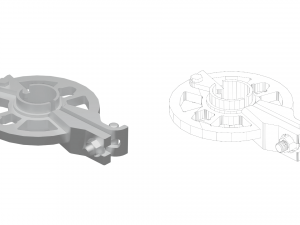

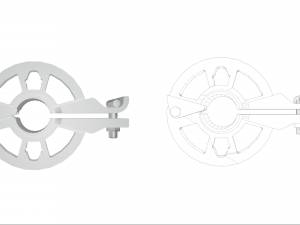

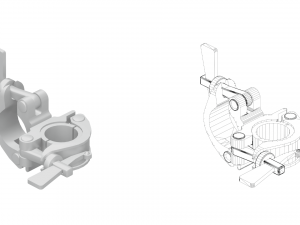

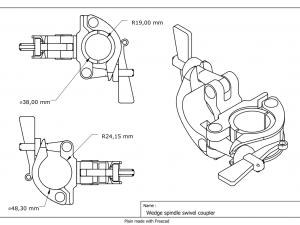

- wedge spindle swivel coupler
Print Ready: No
